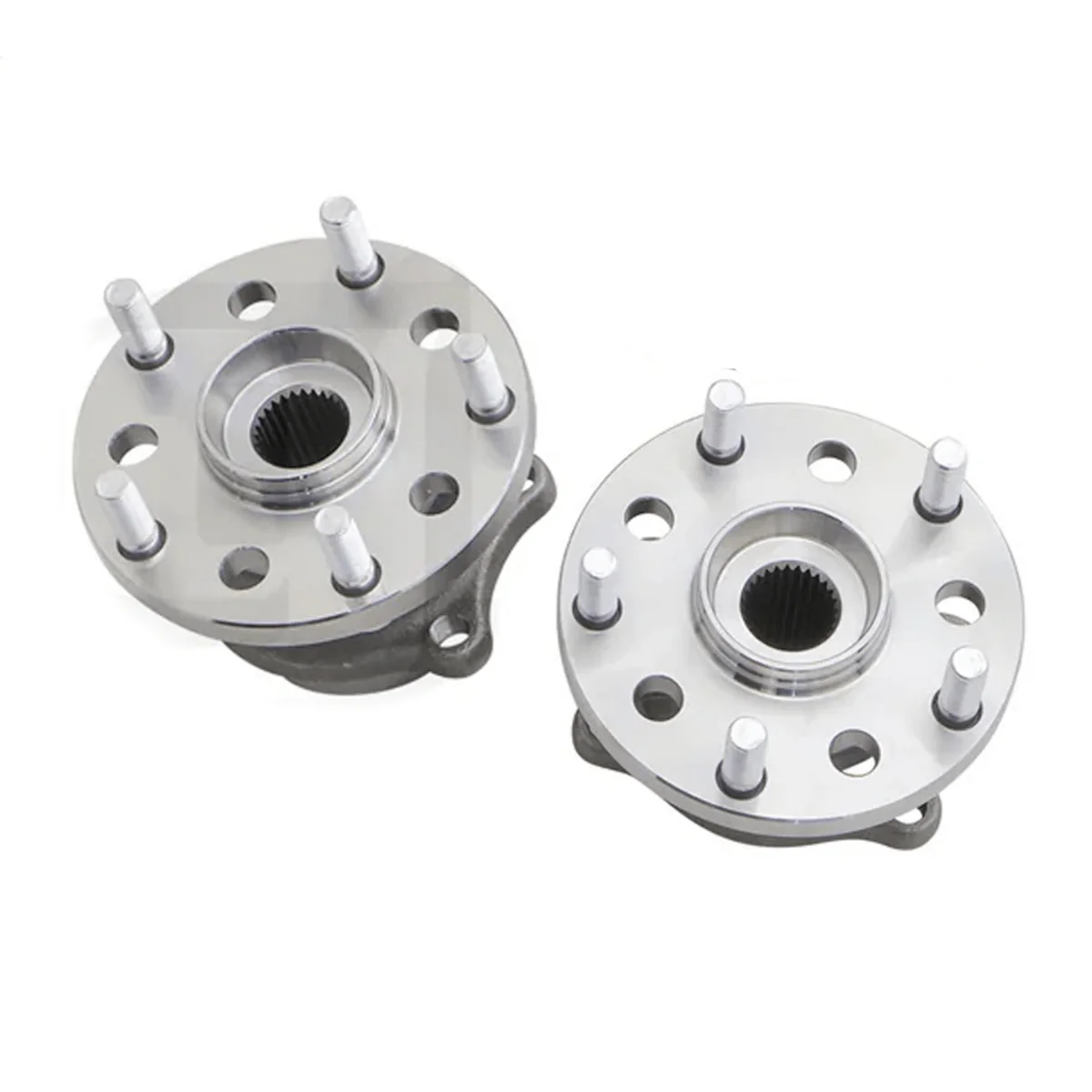

GKTECH’s conversion hubs make it simple to upgrade your setup and open the door to a huge selection of performance and aftermarket wheels. Designed as a complete bolt-on solution, these hubs allow you to remove your OEM 5x100 hubs and install the new 5x114.3 / 5x100 units with no custom fabrication required.

Features:

• Direct Bolt-On Upgrade: Works with both 5x100 and 5x114.3 configurations.
• Durable Construction: Heat-treated structural steel body and flange for maximum strength.
• High-Quality Hardware: Pre-installed Grade 10.9 wheel studs using OEM ID (14.3mm).

• OEM Integration: Maintains factory hub offsets and ABS functionality.
• Pre-Assembled: Includes OEM-quality bearings, seals, and SHELL grease for easy installation.
• Hub Bore:  Factory 56.1mm

Rotor Fitment Notes:

• Factory Brembo Brakes: Re-drill your existing rotors to the 5x114.3 pattern and verify internal lip clearance, or replace with DBA 655S-10
• USDM Non-Brembo Brakes: Re-drill your existing rotors to the 5x114.3 pattern, or DBA 42663S-10
• If your vehicle is not a US-delivered vehicle, note that these front hubs will not work with the 277 x 24mm front rotor setup. These hubs can only work with the Brembo and (USDM) 292 x 24mm rotor variants.
