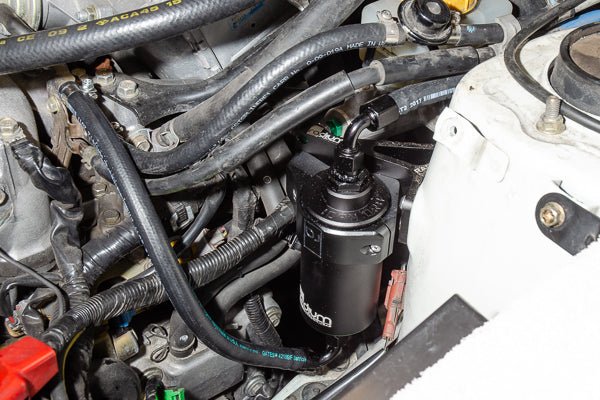

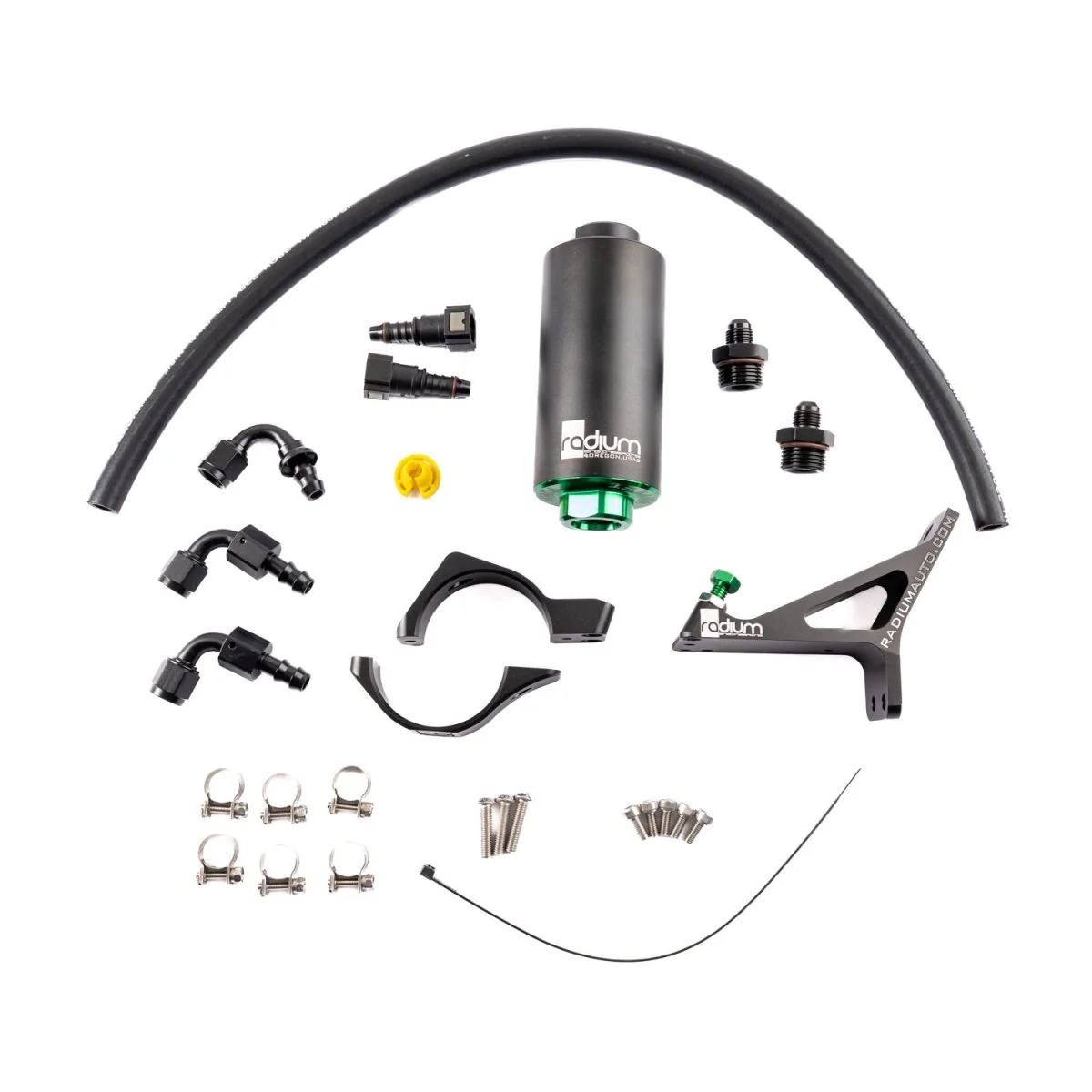

The Early Subaru & Saab Fuel Filter Kit provides a complete, high-performance fuel filtration solution for older Subaru and Saab vehicles. Designed to install inline between the firewall feed hard line and the engine fuel rails, this kit also integrates a brake master cylinder brace, which doubles as a secure mounting location for the fuel filter.

Features:

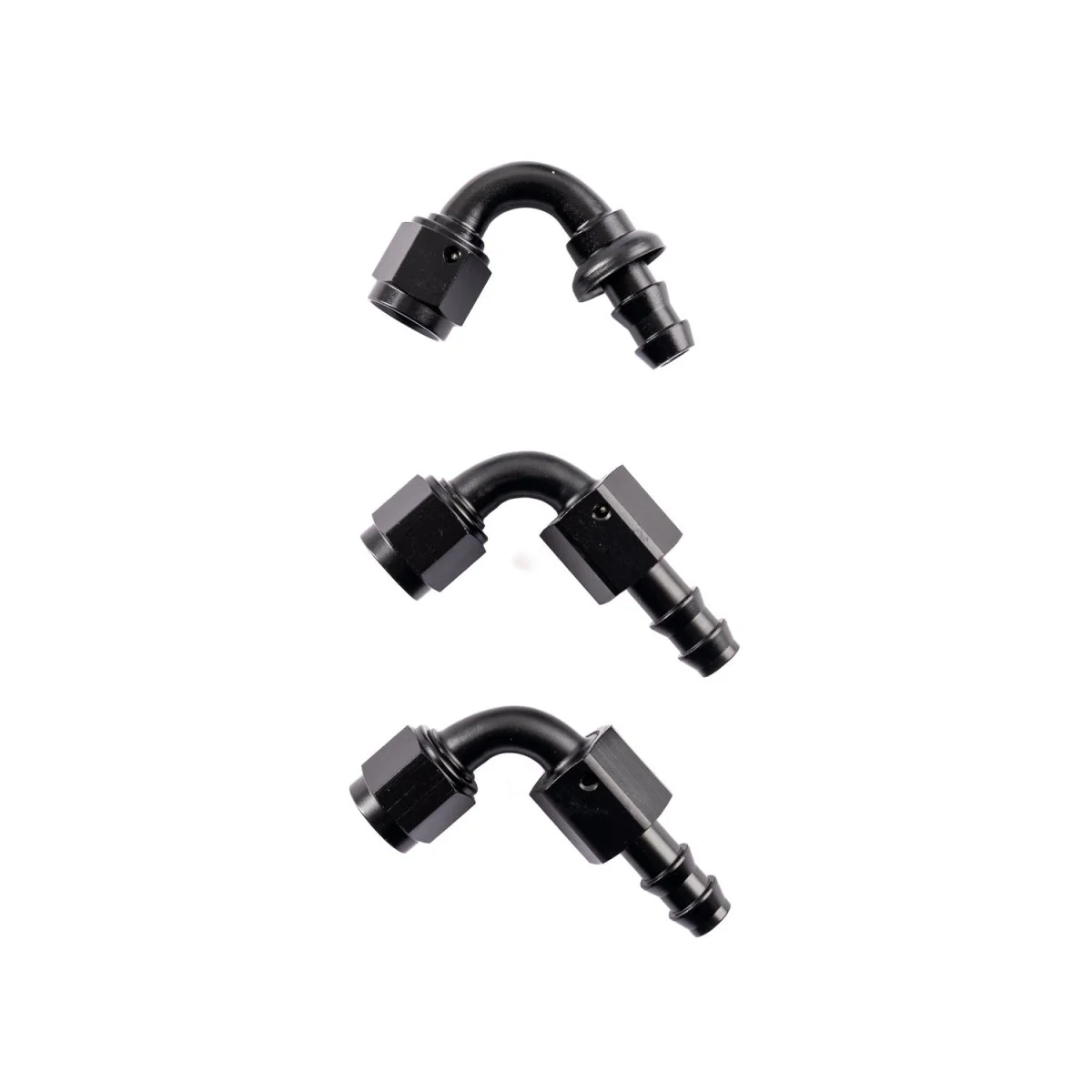

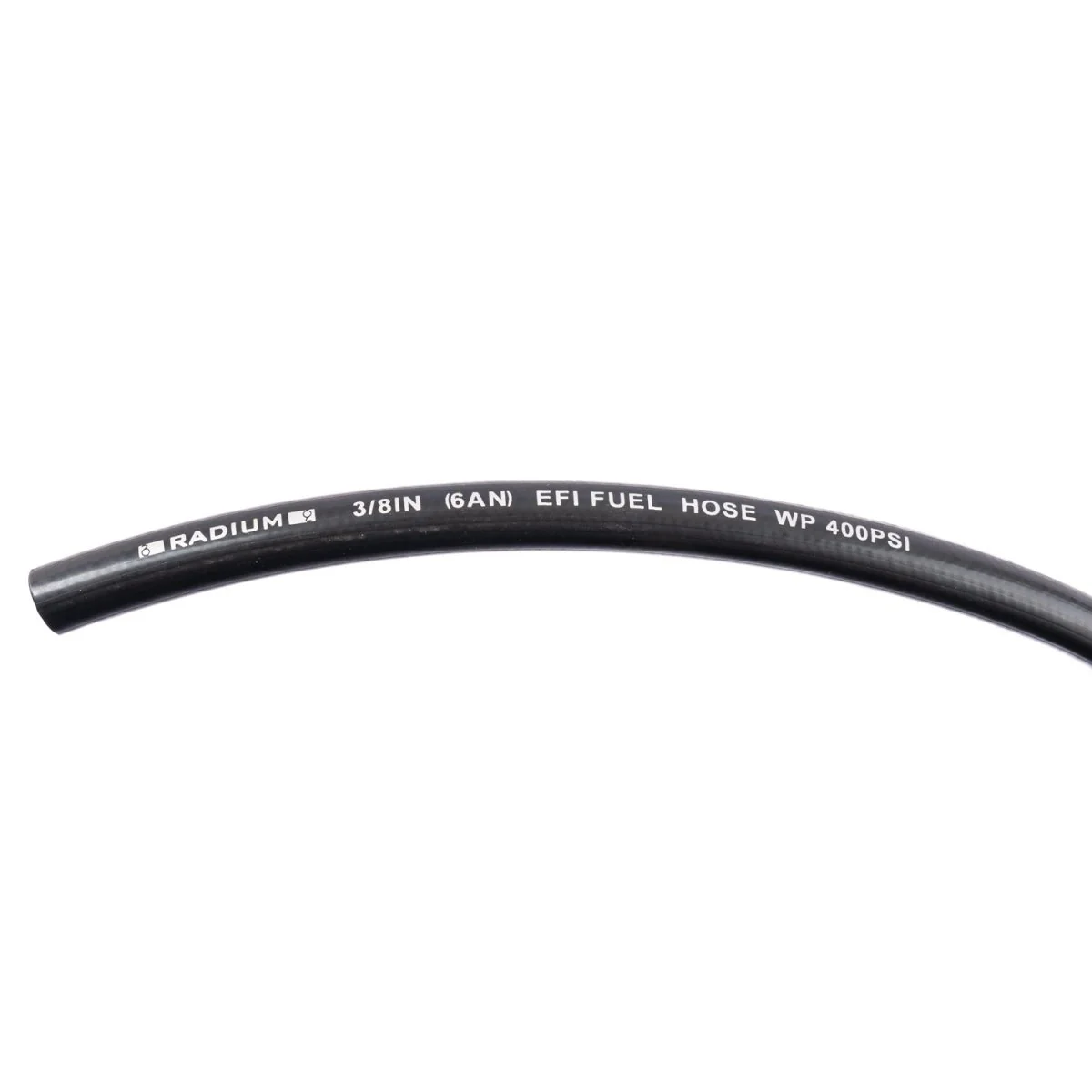

• Replaces OEM feed hose with larger 3/8" EFI fuel hose and 6AN PushLok hose ends for improved flow

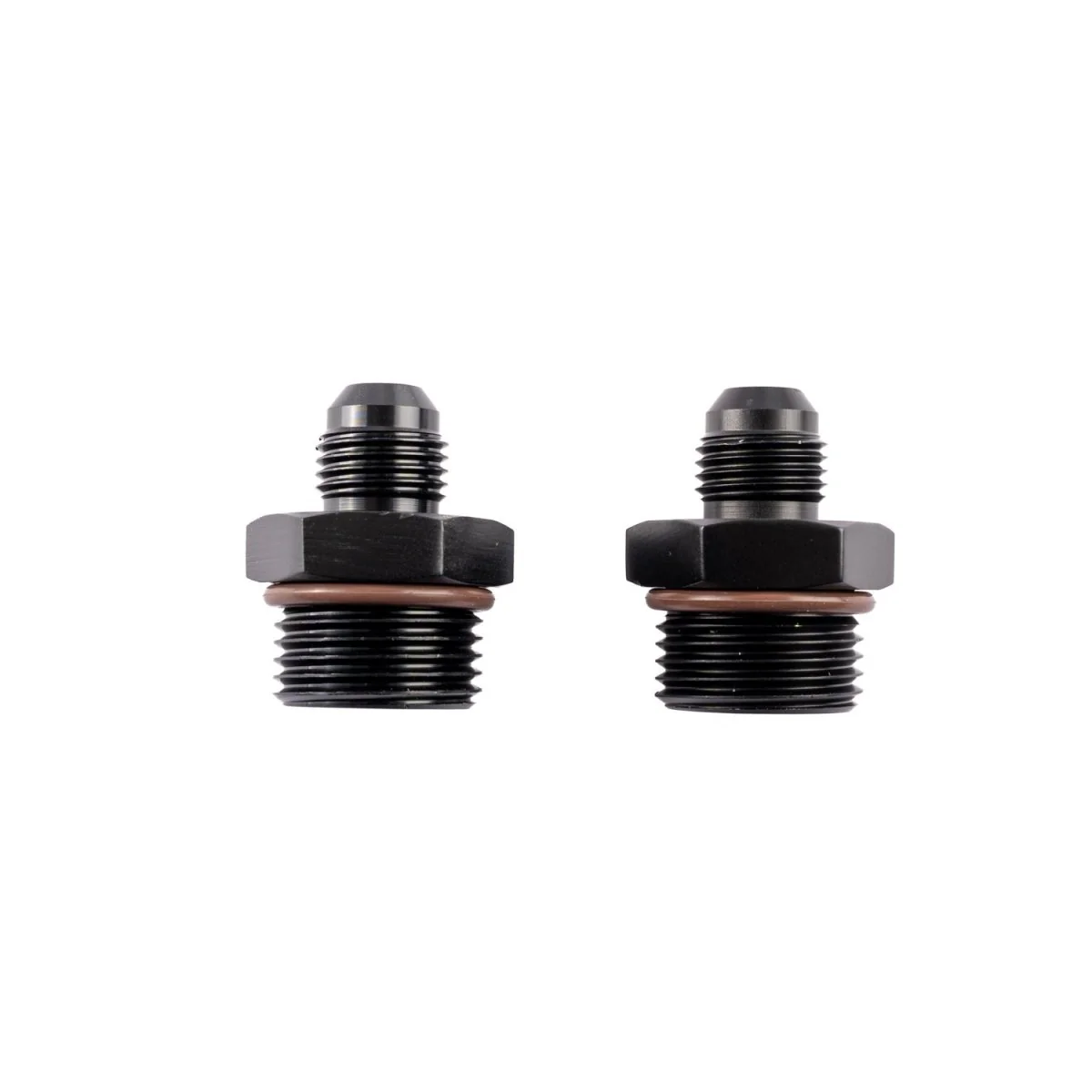

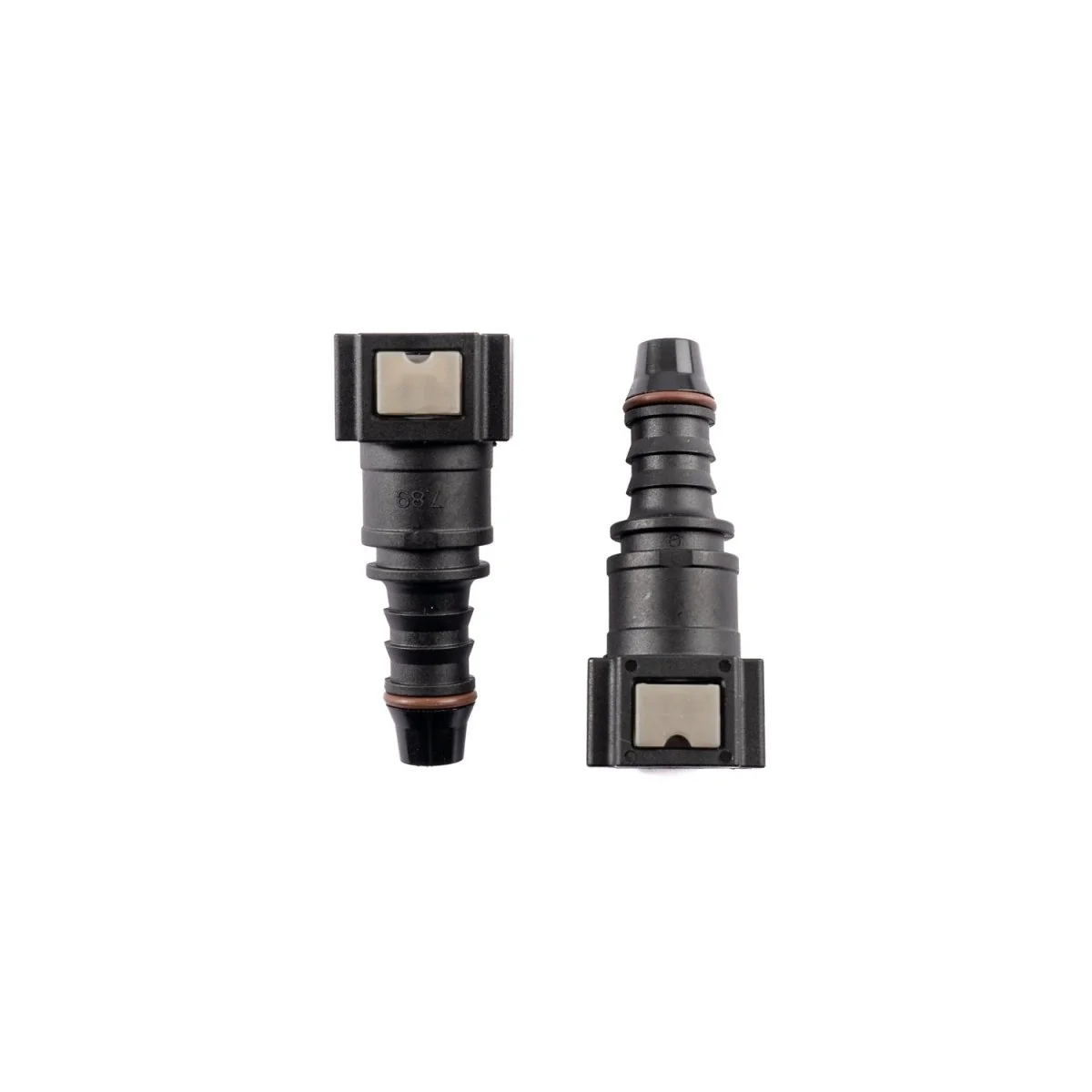

• Compatible with vehicles using barbed fittings, SAE quick connect fittings, and 6AN male inlet fittings on aftermarket fuel rails
• Works seamlessly with Radium fuel rails and the Radium Series Fuel Rail Plumbing Kit (Part 20-0978)

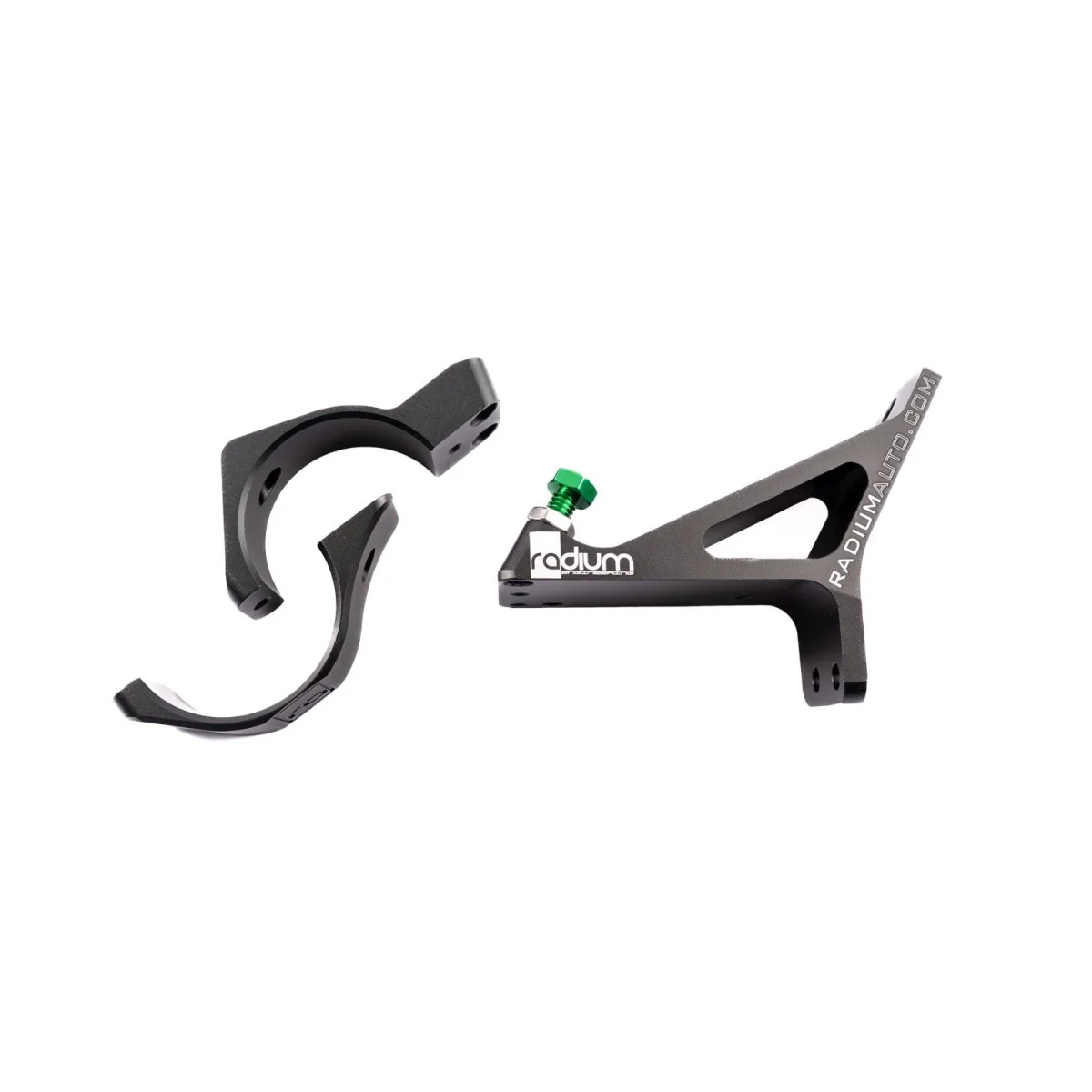

• Includes a mounting location integrated into the brake master cylinder brace
• Simple, inline installation between the firewall and fuel rails

Filter Construction

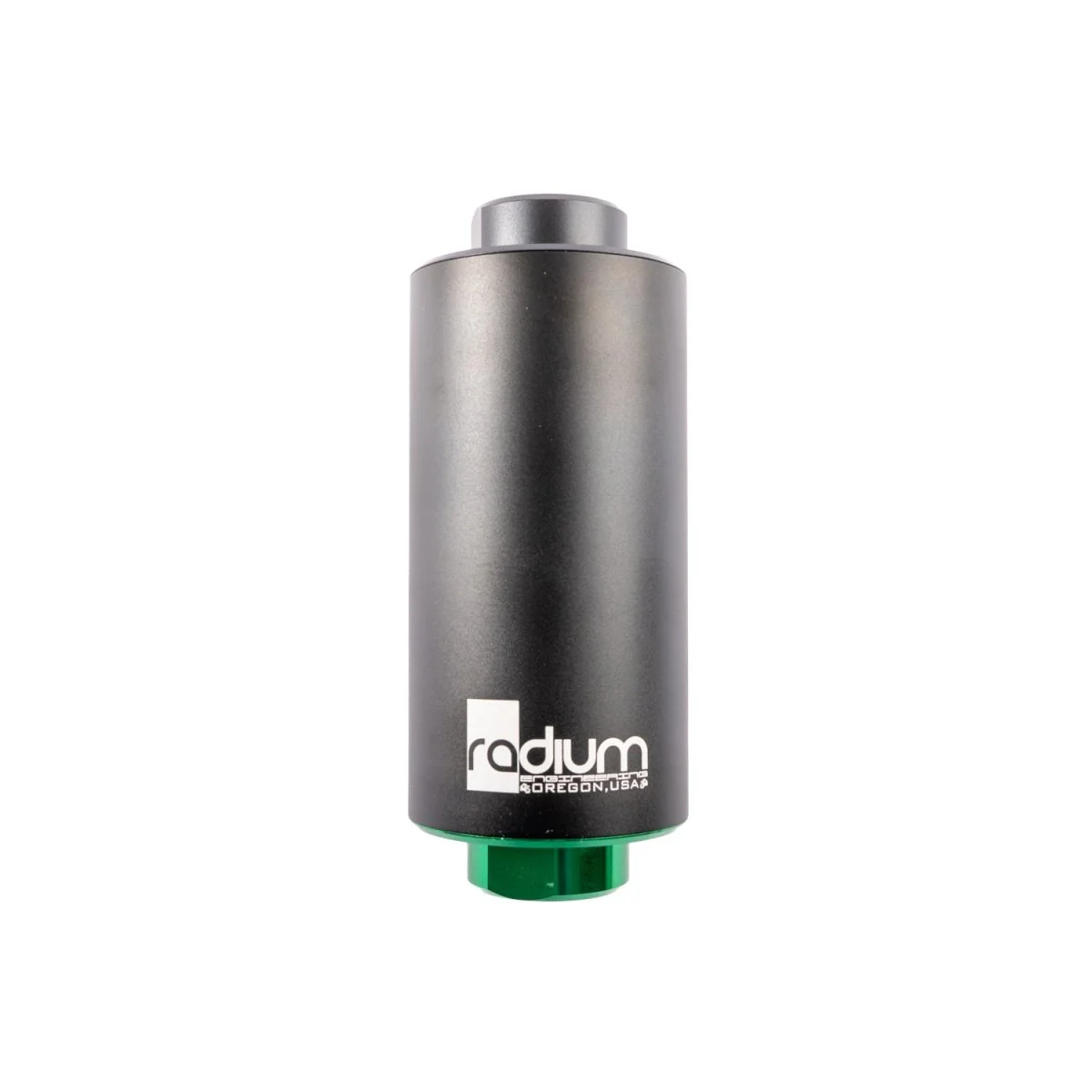

All fuel filters are constructed with a 3-piece body that is CNC machined from 6061 aluminum and Type-II anodized for maximum corrosion resistance. The end caps are sealed to the body with FKM O-rings. The fuel filters come preassembled with the chosen filter element. These filters are compatible with all fuel types, including gasoline, diesel, methanol, ethanol, and alcohol blends such as E85. Pressures up to 150psi can safely be used with negligible pressure drop. As shown below, the filter elements feature a stainless internal core to prevent collapsing at high flows
