SPL Parts Eccentric Lockout Kit 2008-2021 WRX / 2008-2021 STI / 2013-2024 BRZ / 2022-2024 GR86 / 2013-2016 FRS / 2017-2021 GT86

Product image 1
1 / 2

SPL Parts Eccentric Lockout Kit 2008-2021 WRX / 2008-2021 STI / 2013-2024 BRZ / 2022-2024 GR86 / 2013-2016 FRS / 2017-2021 GT86

The stock eccentric bolts provided for small toe adjustments tend to slip under high cornering loads, causing changes to the rear alignment. The SPL eccentric lockout kit eliminates the stock eccentric bolts to keep your rear alignment where you set it.

Benefits

  • Eliminates OEM Eccentrics, Locks Down Rear Alignment
  • One Less Failure Point on Track Day

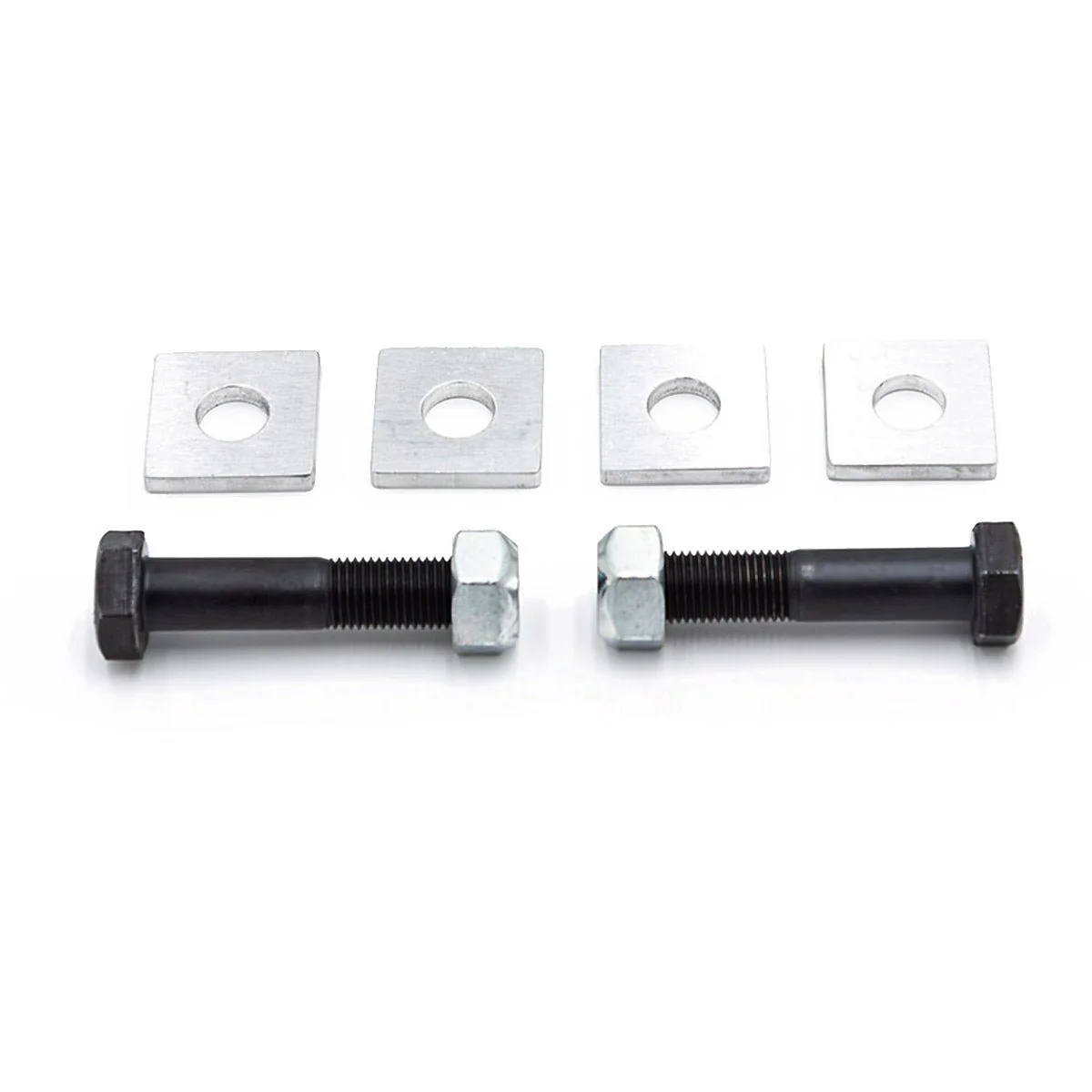

Materials

  • 6061-T6 Aluminum Lock Plates
  • Metric Class 10.9 Steel Bolts

Note: You will need adjustable toe arms to be able to align the car.

Noise, Vibration, and Harshness (NVH)

Product NVH Rating

The eccentric lockouts have no impact to NVH.

Confirmed Applications

  • 2021+ Toyota GR86 (ZN8)
  • 2013 - 2021 Toyota 86 / Scion FR-S (ZN6)
  • 2013+ Subaru BRZ (ZC6/ZD8)
  • 2008 - 2021 Subaru WRX / STI (GR/VA)
  • 2008 - 2019 Subaru Outback
  • 2010 - 2019 Subaru Legacy
  • 2009 - 2018 Subaru Forester

Installation Instructions:

  • Simply remove the OEM eccentric bolt and replace with the lockout kit in the same location. The lockout plates go on the outside of the subframe tabs and are clamped by the supplied bolt. Verify the plates are unable to move and are retained by the OEM indentation.
Note: You will need adjustable toe arms to be able to align the car. See SKU RTAEL FRS for the Toe Arm w/ Eccentric Lock Out Kit
$20.47

Original: $58.50

-65%
SPL Parts Eccentric Lockout Kit 2008-2021 WRX / 2008-2021 STI / 2013-2024 BRZ / 2022-2024 GR86 / 2013-2016 FRS / 2017-2021 GT86—

$58.50

$20.47

Product Information

Shipping & Returns

Description

The stock eccentric bolts provided for small toe adjustments tend to slip under high cornering loads, causing changes to the rear alignment. The SPL eccentric lockout kit eliminates the stock eccentric bolts to keep your rear alignment where you set it.

Benefits

  • Eliminates OEM Eccentrics, Locks Down Rear Alignment
  • One Less Failure Point on Track Day

Materials

  • 6061-T6 Aluminum Lock Plates
  • Metric Class 10.9 Steel Bolts

Note: You will need adjustable toe arms to be able to align the car.

Noise, Vibration, and Harshness (NVH)

Product NVH Rating

The eccentric lockouts have no impact to NVH.

Confirmed Applications

  • 2021+ Toyota GR86 (ZN8)
  • 2013 - 2021 Toyota 86 / Scion FR-S (ZN6)
  • 2013+ Subaru BRZ (ZC6/ZD8)
  • 2008 - 2021 Subaru WRX / STI (GR/VA)
  • 2008 - 2019 Subaru Outback
  • 2010 - 2019 Subaru Legacy
  • 2009 - 2018 Subaru Forester

Installation Instructions:

  • Simply remove the OEM eccentric bolt and replace with the lockout kit in the same location. The lockout plates go on the outside of the subframe tabs and are clamped by the supplied bolt. Verify the plates are unable to move and are retained by the OEM indentation.
Note: You will need adjustable toe arms to be able to align the car. See SKU RTAEL FRS for the Toe Arm w/ Eccentric Lock Out Kit
